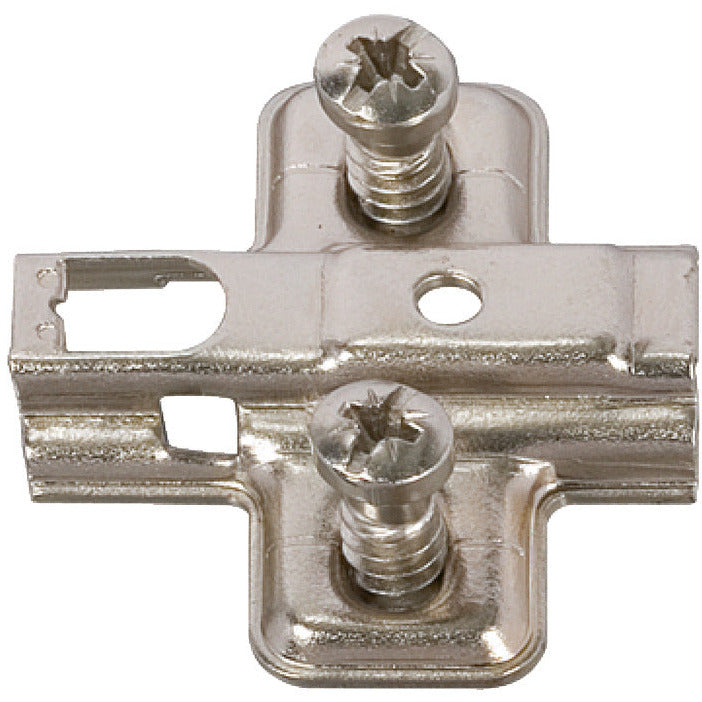

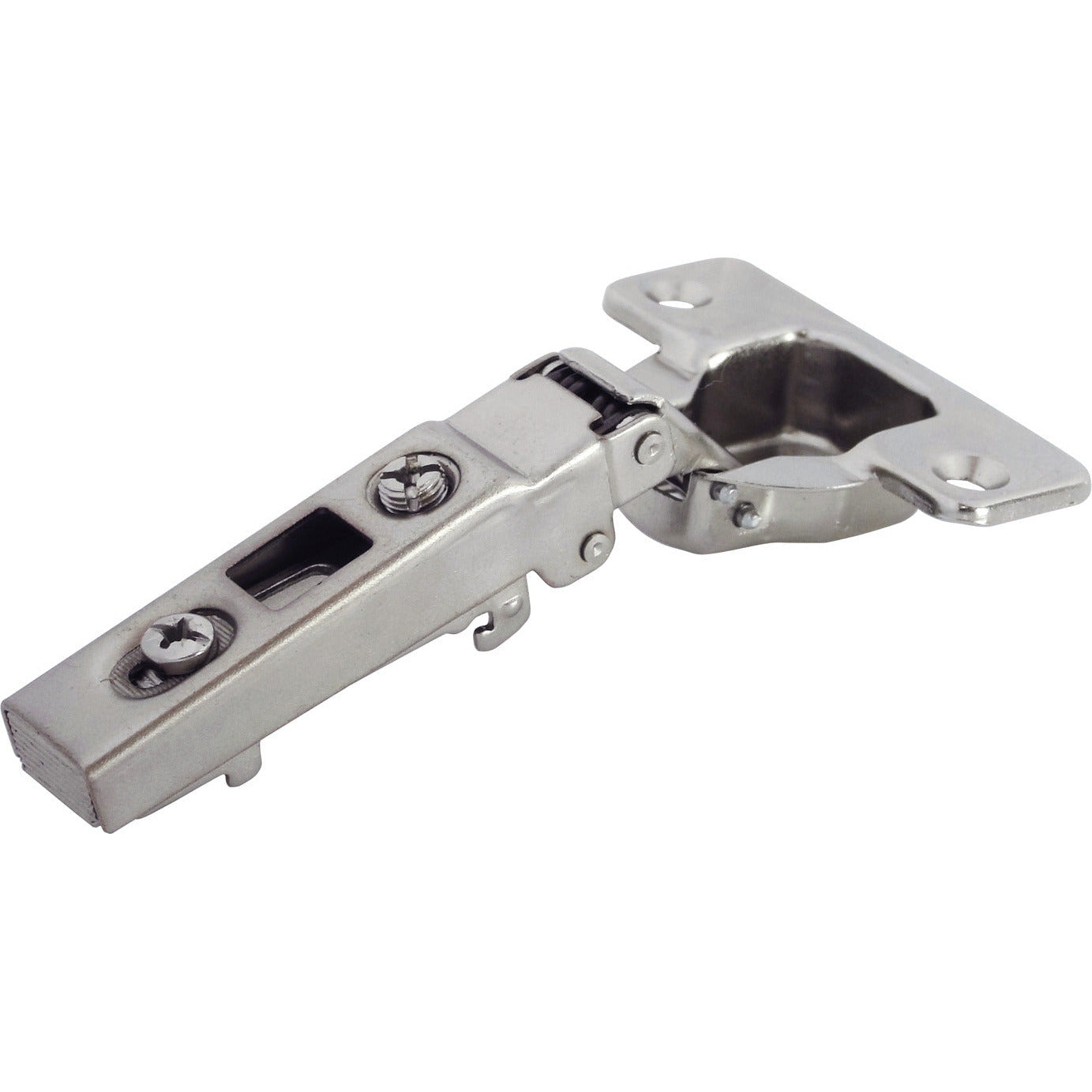

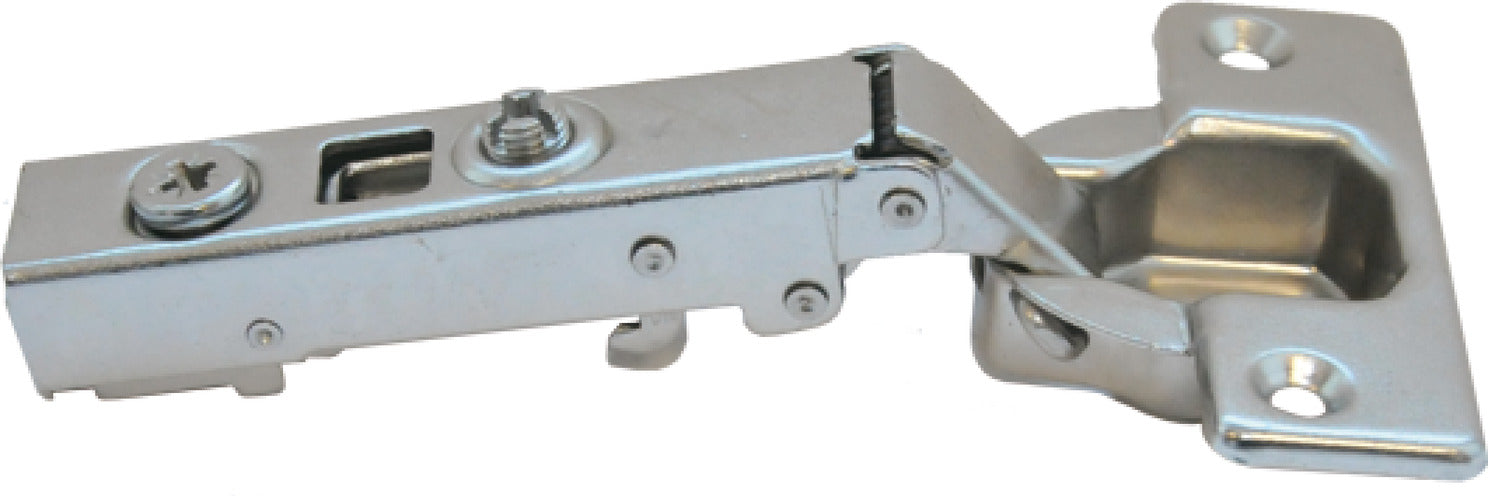

110 degree Full Overlay Hinge & Mount (two sets)

110 degree Full Overlay Hinge & Mount (two sets)

SKU:31160525/71.562

7 total reviews

Regular price $ 17.07
Regular price Sale price $ 17.07
Sale Sold out
Tax included.

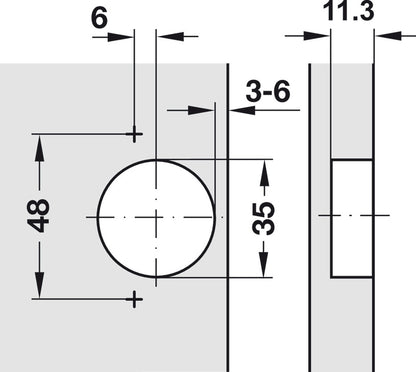

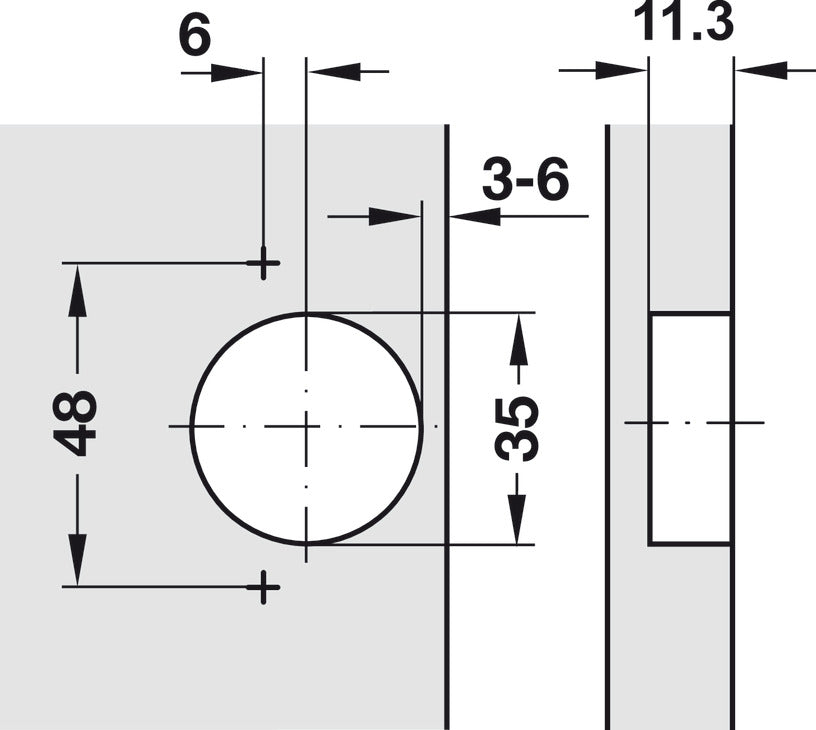

Top Quality 110 degree Full Overlay hinge and mount, ,Steel cup and hinge arm,Nickel-plated finish. Three dimensional adjustment, Lateral adjustment continuously from –1.5 mm to +4.5 mm,Height adjustment from –2 mm to +2 mm, Depth adjustment of -0.5 to +2.8mm. Drilling 35mm wide x 12.5mm deep cup, automatic closing spring.
